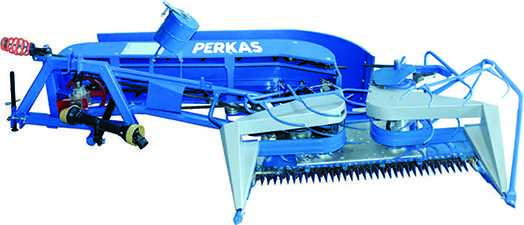

The reaper-binder which is dreven by the power - take - off dreve of the traktor and easily attached to the tractor by its theee - point hitch is a very useful and practical machine that needs very little maintenanceand it reaps and binds the crops such as wheat, wheat grained barley, oat, rye and leaves them collectively on the farm at regular invetals. The cutting height which is adjusted by its hydraulic sleeves automacticaly preserves its level in accord with the uneveness with the help of a safety mechanism against the possible overloads.
| Model |
RB-140 |
| Length |
1900 mm |
| Width |
3470 mm |
| Height |
1100 mm |
| Weight |
4300 kgs |
| Working Width |
1400 mm |
| Working Height |
Adjustable |
| Working Capacity |
8 da/h |
| Tractor Power |
45-55 HP |
| Working Type |
By PTO Shaft |
| Max.-Min.Crop Height |
700-1800 mm |
| Binding Height |
260 mm |
