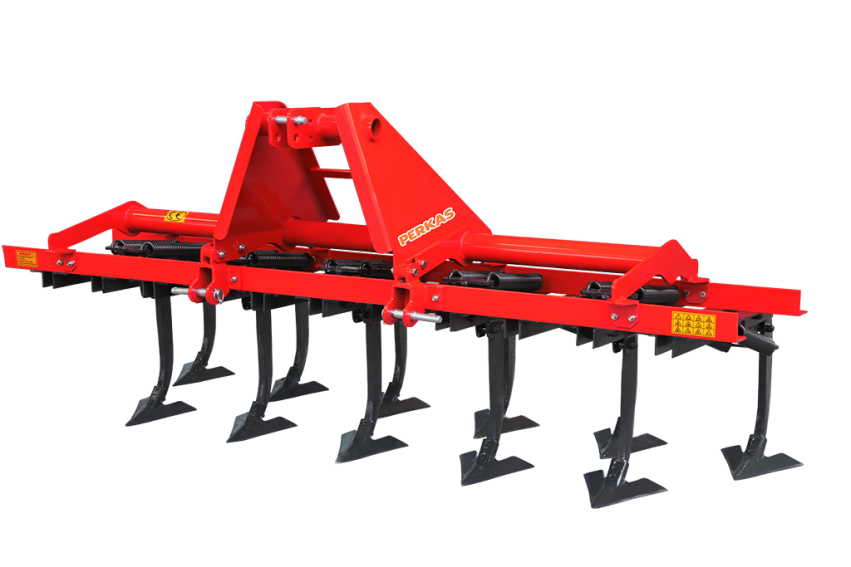

Horizontal Cultivator

Firma no. Paylaş

Horizontal Type Cultivator can be used for several soil processing with its compact structure. It can provide an effective soil processing on stubble processing after harvest.The stubble is mixed to soil by being cut from its root, it becomes organic fertilizer for the next product season. Soil surface seed-bed is prepared in the most convenient way by levelling discs and roller combination.

Model	HTC-07	HTC-09	HTC-11	HTC-13	HTC-15
Length	170 mm	212 mm	274 mm	326 mm	383 mm
Width	109 mm	109 mm	109 mm	109 mm	109 mm
Height	123 mm	123 mm	123 mm	123 mm	123 mm
Weight	380 kgs	470 kgs	570 kgs	660 kgs	740 kgs
Working Width	166 mm	212 mm	258 mm	304 mm	360 mm
Working Depth	25 mm	25 mm	25 mm	25 mm	25 mm
Tractor Power	35-50 HP	50-65 HP	65-75 HP	75-85 HP	85-90 HP
